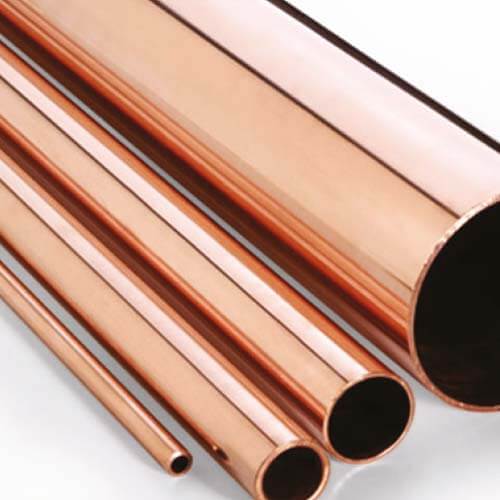

Straight Copper Tube

Soft Straight Copper Tubes Mechanical properties according to EN 12735-1 for soft copper tubes
Temper	Temper designation	Tensile strength (N/mm2 )	Elongation (%) A5	Hardness HV5 (approx.)
Soft	R220	Min.220	40	40 -70

Delivery conditions and packaging for soft copper tubes
Temper designation	Outer Diameter (mm)	Wall thickness (mm)	Delivery Condition	Packaging
R220	5 – 108	0,5 –2,5	up to 6 m straight length	Wooden box

Hard Straight Copper Tubes Mechanical properties according to EN 12735-1 for hard copper tubes
Temper	Temper designation	Tensile strength (N/mm2)	Elongation (%) A5	Hardness HV5 (approx.)
Hard	R220	Min.220	40	40-70

Delivery conditions and packaging for soft copper tubes
Temper designation	Outer Diameter (mm)	Wall thickness (mm)	Delivery Condition	Packaging
R220	5 – 108	0,5 –2,5	up to 6 m straight length	In Bundles, Wrapped in Plastic foil
